Mastering Elastic Network Interfaces (ENIs) in AWS

Core ENI Concepts

1. ENI = Virtual Network Card

   • It’s what connects your EC2 instance to the VPC network.

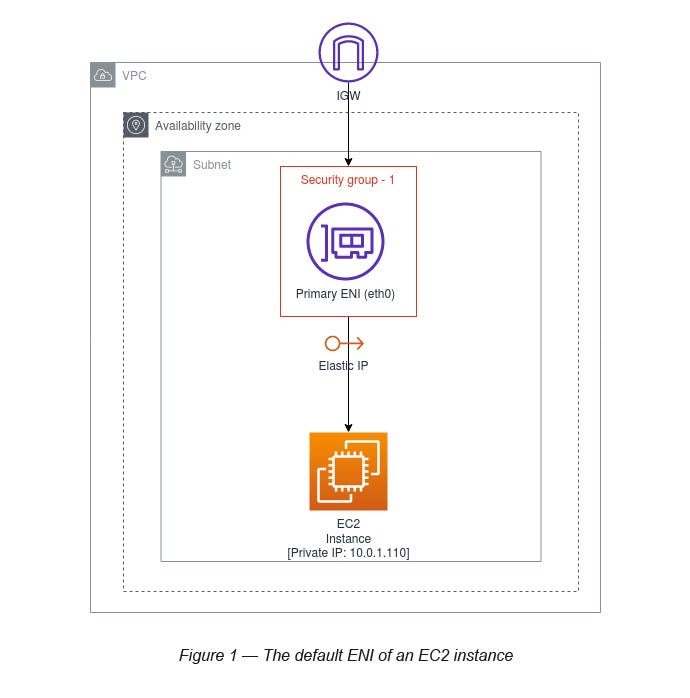

   • Every EC2 instance automatically gets a primary ENI (eth0).

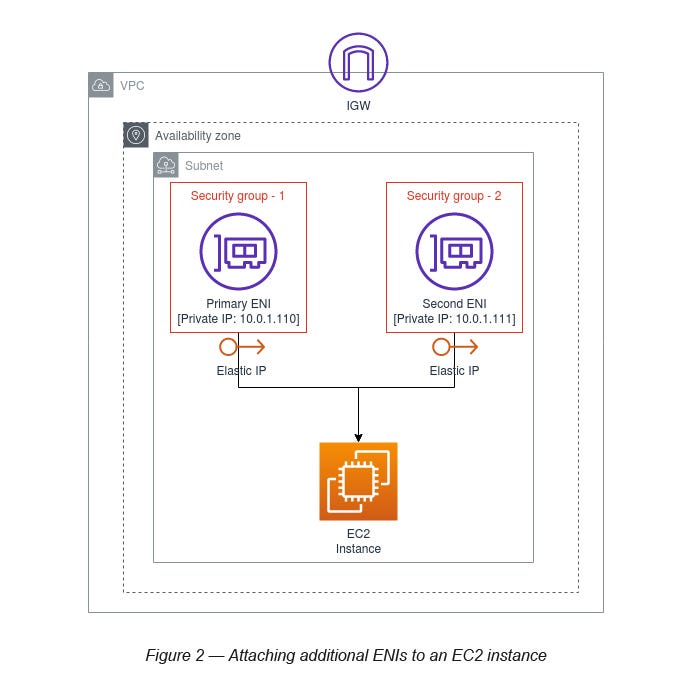

   • You can attach additional ENIs (eth1, eth2...) manually.

2. Each ENI can have:

   • 1 Primary Private IPv4

   • 0 or more Secondary Private IPv4s

   • 1 Elastic IP per private IP (optional)

   • 0 or more Public IPv4s (depends on settings)

   • Security groups

   • MAC address (useful for license-based software)

---

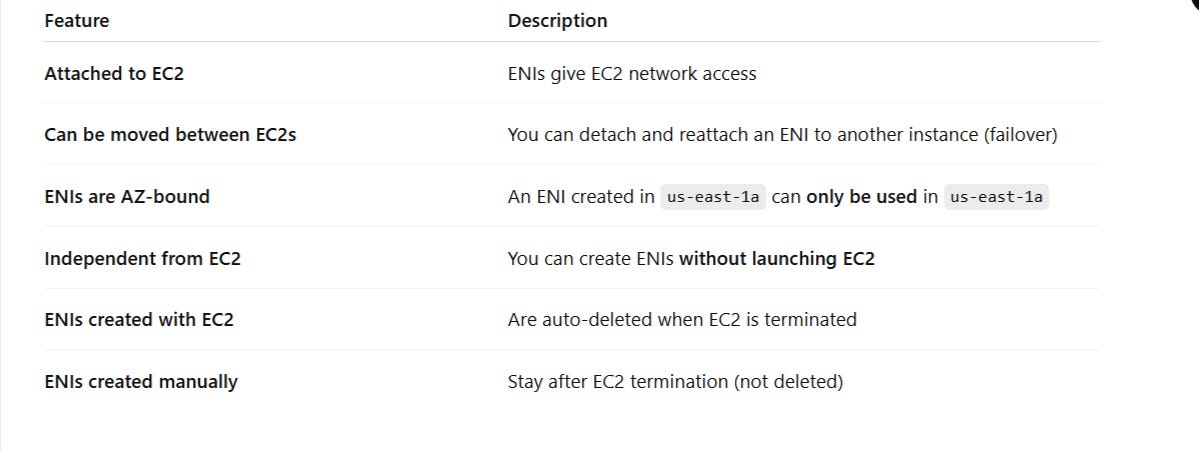

Key Features to Remember for the Exam

---

🔁 ENI Use Cases (Important for Exam)

1. Failover / High Availability

   • Move a secondary ENI from a failed EC2 instance to a standby EC2.

   • Keeps private IP and MAC address, useful for fast recovery and static IP use.

2. MAC-bound Licensing

   • Some software requires a static MAC address. Moving ENI keeps the license working.

3. Multi-Homed EC2s

   • EC2 with multiple ENIs to separate public traffic (eth0) from private backend traffic (eth1).

4. Security Isolation

   • Assign different security groups to different ENIs to control traffic paths tightly.

---

🚨 Important Behavior and Limits

• Each instance type has limits on how many ENIs and IPs you can attach.
  (E.g., t2.micro has 2 ENIs, up to 2 private IPs per ENI)

• ENIs created with EC2 get deleted when instance is terminated (default behavior).
  ENIs created manually do not get deleted unless you delete them yourself.

• You can only attach ENIs to instances in the same AZ.

---

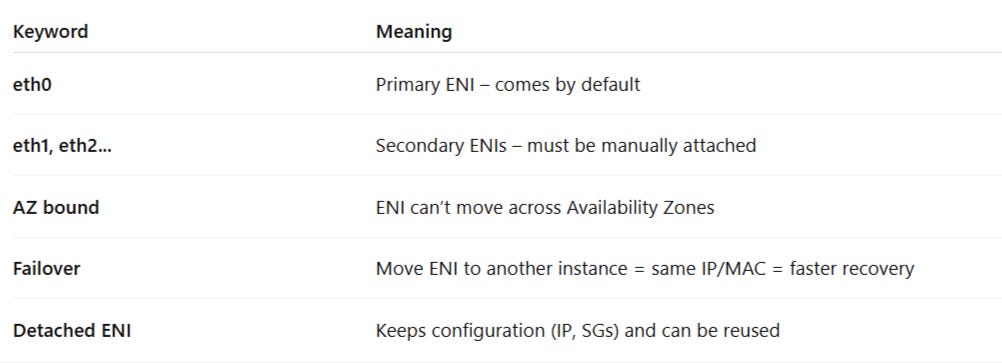

🧠 Memorization Tips for Exam

---

💡 What the Exam Might Ask You

📝 Sample Question Types:

• How to achieve fast failover between EC2 instances with static private IP?
  → Use a secondary ENI that can be moved.

• What happens when you terminate an EC2 with an attached manually created ENI?
  → ENI remains.

• Can you move an ENI from us-east-1a to us-east-1b?
  → ❌ No, ENIs are AZ-bound.

• You need to attach a second ENI to an EC2 — what do you need to consider?
  → Instance type limits, subnet AZ, IP assignment, and security groups.

---

🔧 Pro Tip for Practice

Set up:

• Launch 2 EC2s

• Create a new ENI manually

• Attach it to one instance

• Then detach and move it to the second one

Observe how:

• Private IP stays the same

• MAC stays the same

• Security groups stay the same

• The ENI appears/disappears from the EC2’s networking tab

---

✅ Final Summary (for Flashcards or Notes)

• ENI = virtual network card in VPC

• Comes with IPs, MAC, security groups

• Primary ENI = eth0 = default + mandatory

• Secondary ENIs = eth1+ = optional, movable

• ENIs are AZ-specific

• ENIs help with failover, licensing, multi-homing

• ENIs created with EC2 = auto-deleted

• ENIs created manually = persist after termination
